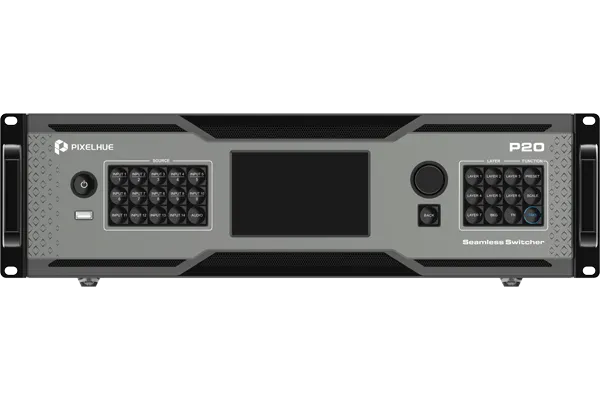

Pixelhue P20 – Power Meets Precision
Take your event production to the next level with the Pixelhue P20 Seamless Presentation Switcher. Built for large-scale events and demanding AV environments, the P20 delivers unmatched flexibility, speed, and stunning 4K performance.
Why Pixelhue P20?

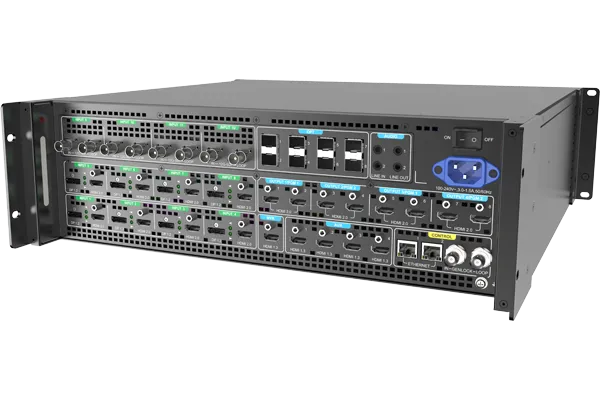

- Unrivaled Connectivity:
8 × DP 1.2 / HDMI 2.0 inputs + 4 × 12G-SDI with loop out for ultimate versatility.
- Crystal-Clear Output:
8 × HDMI 2.0 outputs for flawless 4K delivery.
- Advanced Video Processing:
Real 4K60p, 4:4:4, 10-bit internal processing powered by FPGA architecture.
- Dynamic Layering:
Up to 12 discrete layers (2 MAIN + 10 PIP) or 8 layers (4 MAIN + 4 PIP) for creative layouts.
- Professional Control:
Front panel LCD, Event Controller U5/U5 Pro, PixelFlow software, and Stream Deck integration.
- Compact & Robust:
3RU rackmount chassis, engineered for reliability in mission-critical environments.
Optional Dante Audio Integration
Enhance your P20 with the Dante audio card, enabling seamless audio-over-IP workflows for modern AV setups.
Benefits:
- Simplified audio routing over standard networks
- Low-latency, high-quality audio transport
- Perfect for large-scale events and broadcast environments
- Why It Matters:
Integrating Dante ensures your video and audio systems work in harmony, reducing cabling complexity and improving flexibility for live productions.
Perfect For
- High-end corporate events
- Multi-screen live productions
- Broadcast and streaming setups
- Large-scale AV installations
